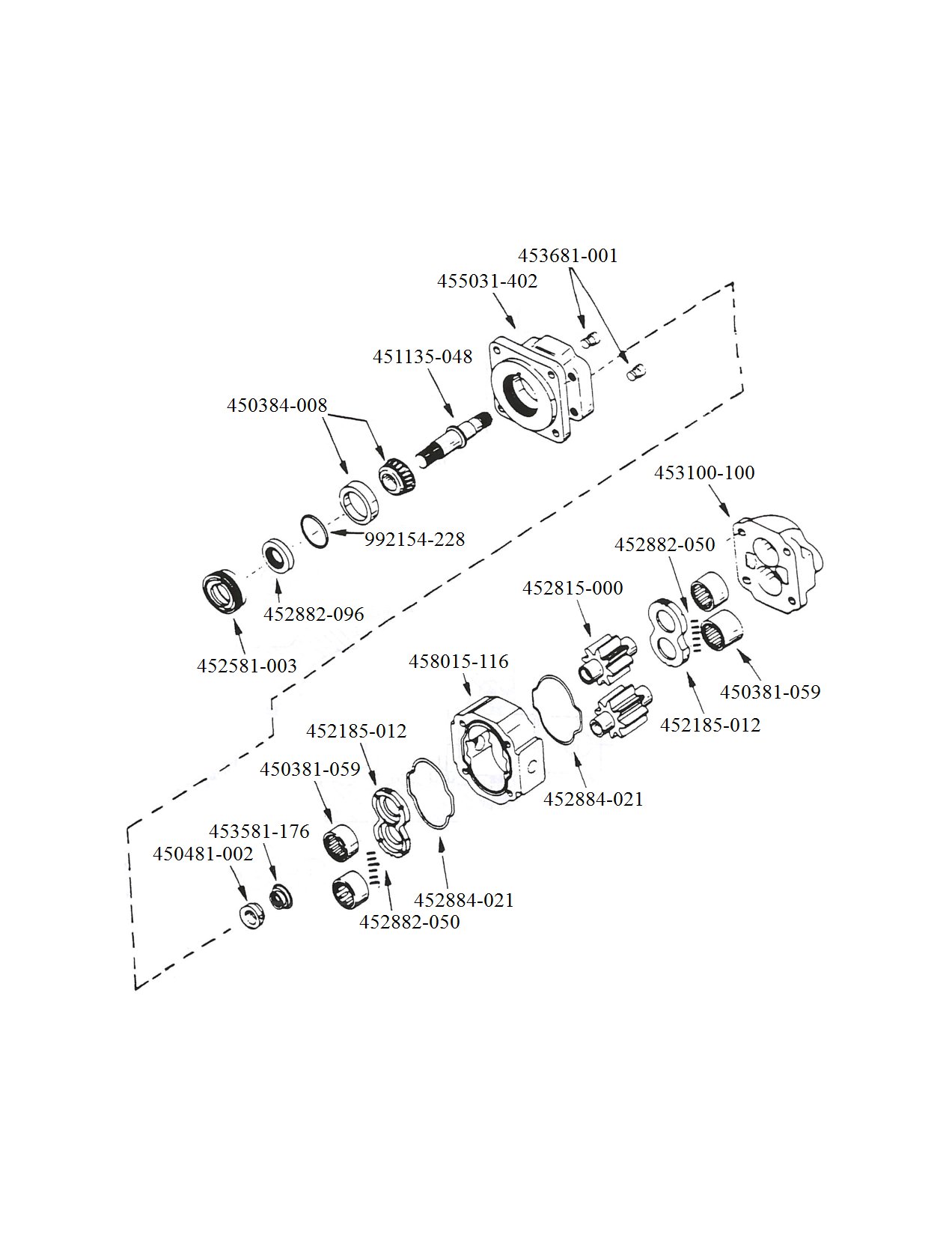

| CT Part # | 45000 Reference # | Weight (lbs) | Weight (kg) | Required | Description | Qty |
| 450381-059 | 450381-059 | .40 lbs | kg | 4 | Roller Bearing | |
| 450384-008 | 450384-008 | .60 lbs | kg | 1 | Roller Bearing w/ Race | |
| 450481-002 | 450481-002 | .04 lbs | kg | 1 | Bronze Shaft Bushing | |
| 451135-048 | 451135-048 | .80 lbs | kg | 1 | Motor Shaft | |
| 452185-012 | 452185-012 | .20 lbs | kg | 2 | Thrust Plate | |
| 452581-003 | 452581-003 | .20 lbs | kg | 1 | Retaining Ring | |
| 452815-000 | 452815-000 | 3.20 lbs | kg | 1 | Driven Gear Set, 1" | |
| 452882-050 | 452882-050 | .01 lbs | kg | 1 | Pocket Seal 103, 3/32" O-Ring Cord (12 pcs) | |
| 452882-096 | 452882-096 | .05 lbs | kg | 1 | High Pressure Seal | |
| 452884-021 | 452884-021 | .01 lbs | kg | 2 | O-Ring Gasket | |
| 453100-100 | 453100-100 | 8.00 lbs | kg | 1 | Port End Cover | |
| 453581-176 | 453581-176 | .01 lbs | kg | 1 | Conical Spring | |
| 453681-001 | 453681-001 | .02 lbs | kg | 2 | Check Valve Assembly | |
| 455031-402 | 455031-402 | 12.40 lbs | kg | 1 | Shaft End Cover | |
| 458015-116 | 458015-116 | 6.80 lbs | kg | 1 | Gear Housing, 1-3/4" | |
| 992154-228 | 992154-228 | .01 lbs | kg | 1 | O-Ring |
